Status 4.0M x 2.1M

Aluminium Bifold Doors
(0 Reviews)

As low as £4,549.00

Colour: Hipca White 9910
Jet Black 9005
Anthracite Grey 7016
Grey 7016 Outside/White 9910 Inside
Hipca White 9910
Configure & Order
Delivery From
Need A Different Size? Available Sizes
Bespoke Size Door Builder 1.8M X 2.1M - 2 Door 2.1M x 2.1M - 3 Door 2.4M x 2.1M - 3 Door 2.7M x 2.1M - 3 Door 3.0M x 2.1M - 3 Door 3.6M x 2.1M - 4 Door 4.0M x 2.1M - 4 Door 4.2M x 2.1M - 5 Door 4.8M x 2.1M - 6 Door 4.8M x 2.1M - 5 Door 5.0M x 2.1M - 5 Door 6.0M x 2.1M - 6 Door Design Your Own Design Your Own

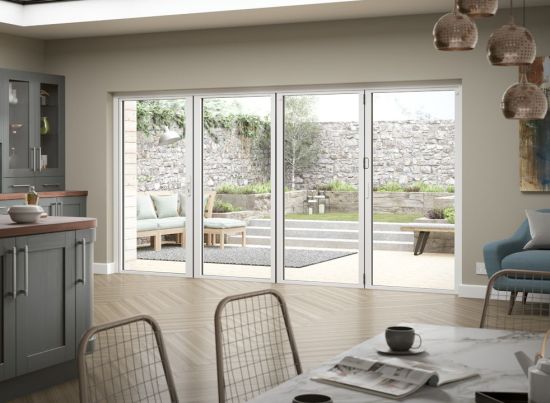

Status 4.0m White Aluminium Bifold doors
Status 4.0M x 2.1M External Doors
Save
Left Opening
Left Opening
Opens to the left when viewed from outside
+
Right Opening
Right Opening
Opens to the right when viewed from outside
+
Double Glazed
Double Glazed
+
Triple Glazed
Triple Glazed
+
Bottom Track No Cill
Bottom Track No Cill
Illustration is for outward opening. Fully weatherproof bottom rail only for lower overall threshold height
+
Bottom Track With Cill
Bottom Track With Cill
Illustration is for outward opening. Designed to drain water away from the face of the brickwork
+
White Handles And Black Hardware
White Handles And Black Hardware
Access door handle, twin point lock handle and magnetic catches in white. Pull handle and remaining hardware in black to match seals
+
Satin Nickel Handles And Hardware
Satin Nickel Handles And Hardware
Access door handle, twin point lock handle and magnetic catches in satin nickel. Pull handle and remaining hardware also in satin nickel
+
Blinds Are Not Available With Triple Glazing Option
Free Installation Kit
Free Installation Kit

Includes everything you need to install your Vufold Aluminium Bifolding or French door set. Contents include screws, drill bits, allen key, silicone and packers.

+ Save
Blinds Are Not Available With Triple Glazing Option
White Bifold Door Trickle Vents
White Bifold Door Trickle Vents

2 trickle vents with an air flow of approximately 10,000 mmsq

+ Save
Blinds Are Not Available With Triple Glazing Option
White/Black Blind
White/Black Blind

White trim blind in black, designed to perfectly fit the Status & Supreme external doors

+ Save
Blinds Are Not Available With Triple Glazing Option
White/Concrete Blinds
White/Concrete Blinds

White trim blind in concrete, designed to perfectly fit the Status & Supreme external doors

+ Save
Blinds Are Not Available With Triple Glazing Option
White/Iron Blinds
White/Iron Blinds

White trim blind in iron, designed to perfectly fit the Status & Supreme external doors

+ Save
Blinds Are Not Available With Triple Glazing Option
White/White Blinds
White/White Blinds

White trim blind in white, designed to perfectly fit the Status & Supreme external doors

+ Save
Please Note: Any order placed for bespoke / customisable items or product(s), which includes Status External Doors, cannot be amended or cancelled
Total
Delivery From

Experience the modern and stylish Vufold Status doors, featuring slim sightlines, low thresholds, and high security. Our ready to assemble door sets give you years of trouble-free operation all backed up with our 15 year guarantee.

Status Door SetStatus Door Set

Guarantee

We’re so confident in our system and manufacturing processes we have no hesitation in backing our products with an extensive 15-year guarantee.

Status HandleStatus Handle

Security

We take security very seriously, that’s why the multi point locks we use on our Status Bifolds pass the rigorous PAS 24 security standard.

Status white 3 door openStatus white 3 door open

Thermal Efficiency

Thermal performance is more important than ever, with its polyamide thermal break and insulating foam between the aluminium sections, our Status bifold is exceptionally thermally efficient and will help reduce energy bills.

BUILD YOUR OWN BIFOLD DOOR

If our standard sizes or specifications aren't quite right

Click Here To Design Your Own

READY TO ASSEMBLE

Unlike some others, our Status aluminium bifolds are only supplied as a complete package. In other words, they come with everything you need pre-machined, pre-glazed and ready-to-assemble. You might find similar looking, cheaper door sets but they don’t include all the items you need - whereas our Ready to Assemble Sets offer you many advantages

  • Comprehensive, easy-to-follow fitting instructions.
  • Doors and frames clearly labelled for easy identification.
  • Pre-glazed, tow and heeled in our factory, meaning an experienced fitter is not required.
  • Everything is fully pre-machined, no specialist equipment is required.
  • Door gaskets are pre-fitted, along with the majority of the hardware.
  • All fixings and sundries supplied meaning you can assemble straight away.
  • Quicker installation on site reducing time and therefore cost.

HOW TO INSTALL ALUMINIUM EXTERNAL BIFOLDS

Product Description

The Vufold Status range of aluminium bi-fold doors are high performing yet affordable with no compromise on quality or efficiency. Boasting some of the narrowest sightlines on the market, with a glass to glass sightline of only 123mm, giving you a larger glass area, this white, Double or triple glazed, 4.0M, 4 door aluminium bi-fold door set is sleek and contemporary in looks.

The Status bifold doors undergo independent weather testing to meet the highest standards. They feature a polyamide thermal break and insulating foam between the aluminium sections, providing exceptional thermal efficiency for the complete product of 1.4 W/m2K for double glazed and 1.0 W/m2K for triple glazed. The remarkable high-tech roller design ensures years of effortless opening and closing, keeping your home secure and weatherproof throughout the year.

U-values are more difficult to achieve but a much better indicator of thermal efficiency than the new window and door energy ratings.

For maximum security the white aluminium 4.0M Status has a multi-point locking system including top & bottom hook locks, that passes the rigorous PAS 24 certification. And for added security, there are also extra twin point security bolts operated by an internal key locking handle.

Document Q compliant - Do I need Document Q?

Vufold’s unique manufacturing techniques allow the glazed units to be installed during factory production, we also include everything you need to fit the doors making this a ready-to-assemble door set.

Each 4.0M white aluminium bi-folding door set includes:
• Door frames
• Hardware and handles(s)
• Tracks
• Fixings, catches and door stops

With easy to follow instructions, installation couldn’t be simpler.

Additional options and extras:
• Satin nickel hardware and handle
• Bottom track with cill
• Blinds

Please Note: Any order placed for bespoke / customizable items or product(s), which includes Status bifolds (non-express) cannot be amended or cancelled.

Measurements & Dimensions

Brick Opening Width (mm) 4000
Brick Opening Height (mm) 2100
Outer Frame Width (mm) 3990
Outer Frame Height (mm) 2090
Frame Depth (mm) 85
Overall Weight (kg) 152
Door Depth (mm) 75
Opening Options Left or right opening option (When viewed from outside) with daily access door

Materials & Certifications

Pre-Finish Details White RAL 9910
Security Multi point locking system including twin deadbolts in upper and lower positions on main access door that passes the rigours of PAS 24 and the forthcoming EN14351-1 2006 security standard. Extra twin point security bolts, handle operated from the inside.
Construction Thermally broken aluminium
Hardware Black as standard or upgrade to satin nickel
Doors 3+1 configuration
FSC® Certified (FSC-C005627) No
Glazing Spec Low E Argon filled 24 or 48mm thickness, Double or triple glazed unit using toughened tempered safety glass.
Safety Glass Compliance BSEN12150 & BSEN 12600
U Value 1.4 W/m2K (double glazed), 1.0 W/m2K (triple glazed)
Part L Compliant Yes
Weather Tested Yes

Downloads & Manuals

pdf Specification sheet
pdf UKCA Certificate
pdf UKCA Certificate
pdf Installation Manual
pdf Homeowner Manual
pdf Vufold Brochure

Delivery & Guarantee

Delivery

We operate a professional 2-man home delivery service with delivery to most mainland UK postcodes within 4 - 5 weeks from the order being accepted.
More information on deliveries

Guarantee

Vufold's external aluminium status bifold doors are guaranteed for fifteen years against manufacturing faults.
Guarantee details can be found here

Returns and cancellations

As a consumer, you have the right to cancel your order and contract with Vufold ltd, under The Consumer Contracts (Information, Cancellation and Additional Charges) Regulations 2013, within 14 days without giving a reason.
Full returns and cancellation policy

The image/svg+xml mobile logo Difference is in the detail

Our aim has always been to create fantastic products we’d want in our own homes, we then add great customer service to look after you before, during and after your purchase.

I can honestly say I'm extremely impressed with everything from customer service and the fast delivery time to the quality of the doors and the instructions. I would highly recommend the company and the product.

IAN BELLAMY

Excellent quality product and great service from ordering through to delivery and after.

DOREEN MARLOW

Delivered within a few days of order, on time and as agreed, contains all fixings, fixing tips, masonry and timber drill bits. Instructions really well written and easy to fix. Couldn’t have had a better experience..

REYNOLD PESCI

  • How long will it take to receive my Status Bifold door?

    Our delivery times vary, depending on time of year and demand, each product listing will tell you the current lead time for your order. Once we despatch your doors most of our customers will receive them in 3 working days, if you are in an outlying area it will be 5 working days. You'll get an email when we've despatched your door to our two man delivery service, they will contact you direct usually by text with a delivery slot to let you know when the doors will arrive.

  • What is the guarantee?

    Status doors come with a 15 year guarantee.

  • How high is the threshold?

    The threshold if not using a drip sill is 30mm and 50mm with a drip sill. Detailed frame section drawings and dimensions can be found in the 'Downloads And Manuals' tab of the product info.

  • Do Vufold do installation?

    Vufold do not offer an installation service all our sets are designed to be easily installed by a local tradesperson or competent DIYer.

  • What is the sightline?

    Status bifolds glass to glass sightline is only 123mm

  • Do you do custom sizes?

    Yes we can do custom Status Bifold door sizes, follow the link to our Status custom quote form.

  • What security do Vufold doors have?

    All Vufold external doors have high levels of security. They will surpass the requirements of building regulations and insurance companies.

  • What is the u-value?

    Double glazed is 1.4w2k and triple glazed is 1.0w2k.
